Primapen
Infant Feeding Tube with Graduation
Ref Code: 40180-40186

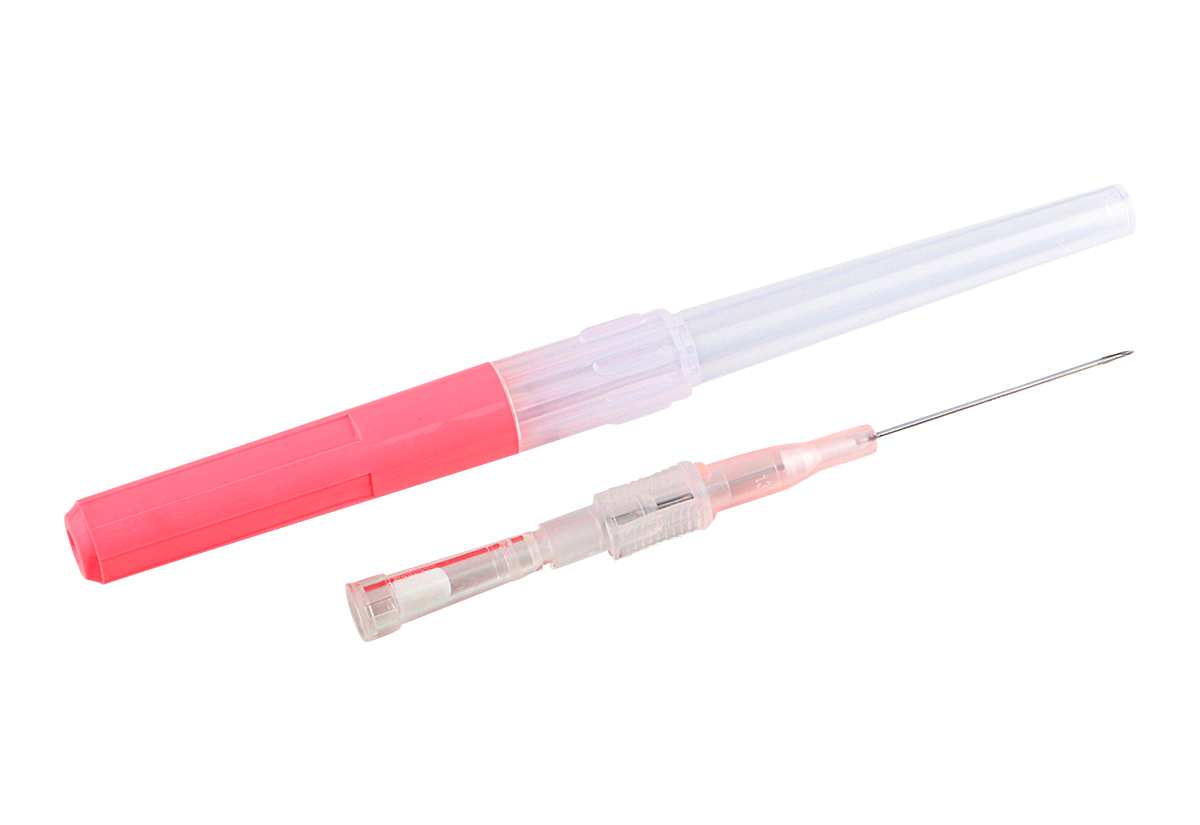

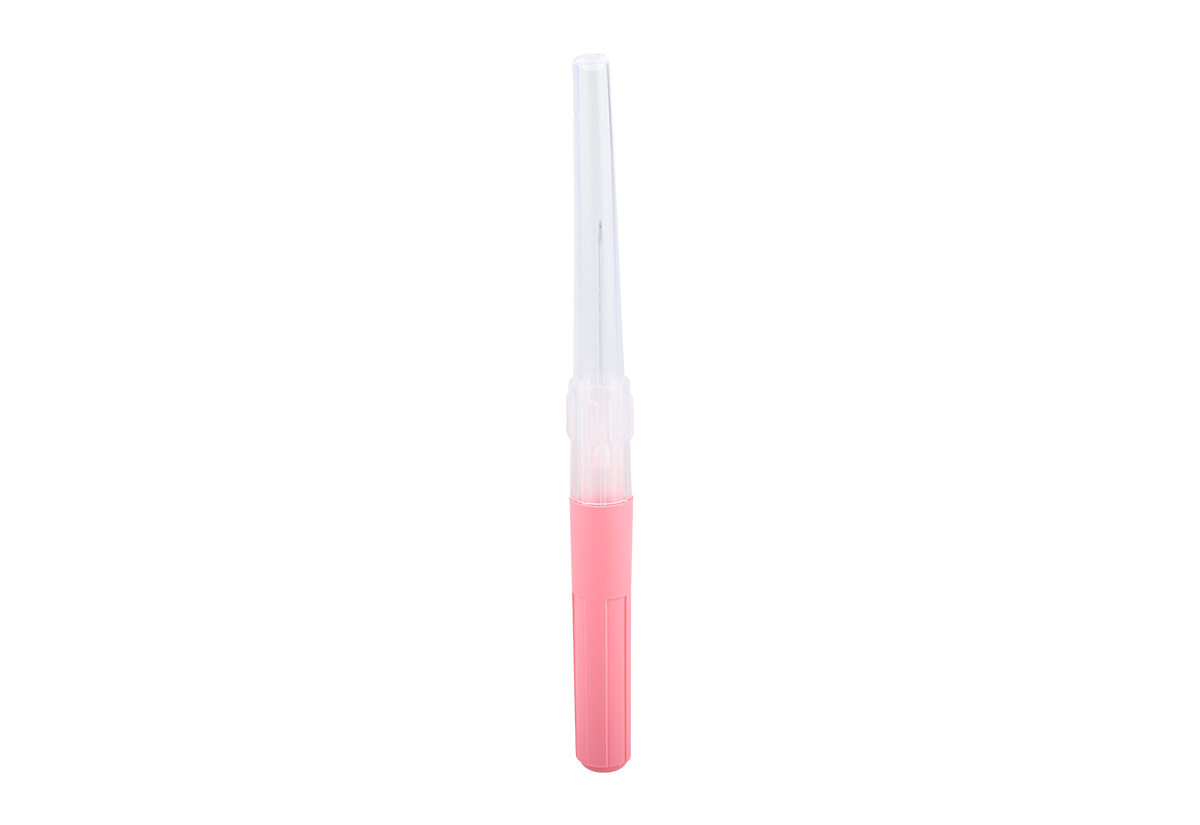

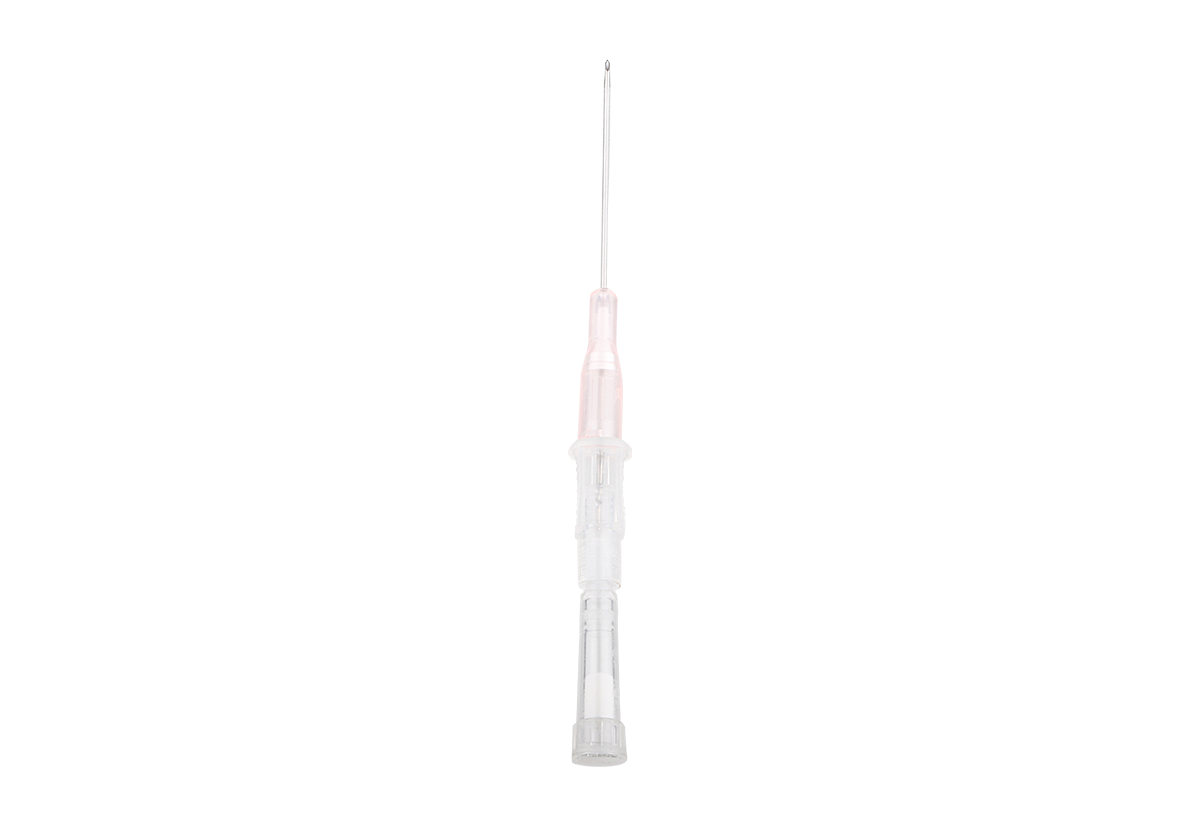

Pen type IV Cannula.
Features and Benefits
- Biocompatible Radio opaque catheter for smooth & easy insertion, x-ray detection.
- Plain IV cannula with porous plug for quick venting and clear view.
- Full-proof mechanism to ensure correct orientation of needle bevel.
- Easy grip needle hub for better hold and control during cannulation.
- Specially designed long needle cover which can be used for safe disposal of needle after catheter placement to prevent needle stick injuries.
- Very useful in high-rick cases where no extra opening is permitted for risk of infection.
- Clear transparent flash back chamber with porous plug for quick flash back and clear view.
- Secure packing prevent product damage and use less storage space.
- Available in FEP/PTFE Catheter.
- Colour coded body and packing cap for easy Identification of Gauge size.
- Single Use, Non Pyrogenic, Sterile
Specifications
| Ref/Art No. | Gauge | Colour Code | Ext. Dia. mm | Catheter Length mm | Flow Rate ml./min | Packing Inner/Outer unit |
|---|---|---|---|---|---|---|
| IT0108-14 | 14G | Orange | 2.1 | 45 | 300 | 100/1000 |
| IT0108-16 | 16G | Grey | 1.7 | 45 | 200 | 100/1000 |
| IT0108-17 | 17G | White | 1.5 | 45 | 140 | 100/1000 |
| IT0108-18 | 18G | Green | 1.3 | 45 | 90 | 100/1000 |
| IT0108-20 | 20G | Pink | 1.1 | 32 | 60 | 100/1000 |
| IT0108-22 | 22G | Blue | 0.9 | 25 | 33 | 100/1000 |
| IT0108-24 | 24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
| IT0108-26 | 26G | Violet | 0.6 | 19 | 15 | 100/1000 |
