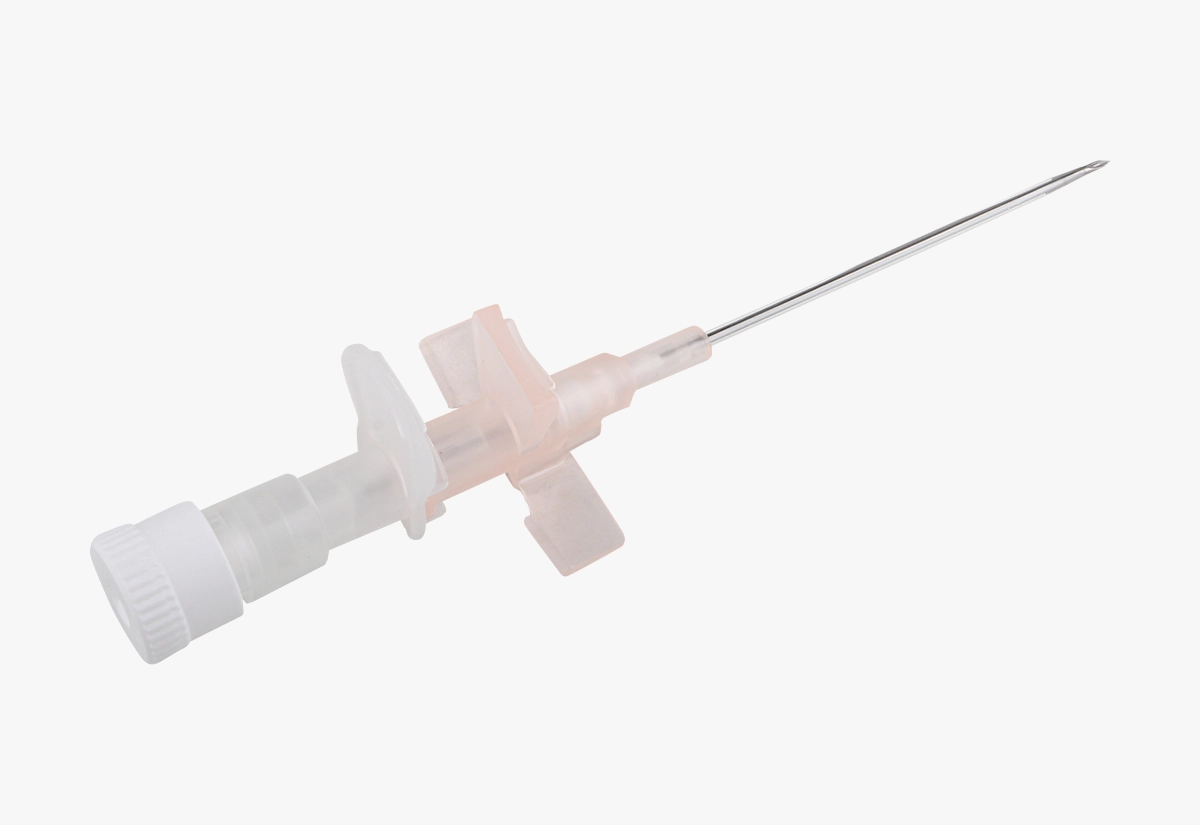

IV Neo
Infant Feeding Tube with Graduation
Ref Code: 40180-40186
Art Reference No. IT0110
Features and Benefits
- New miniature design for cannulation of small & soft veins, especially in Pediatric.
- Provides small projection on main body for ease of handling during cannulation yet non-interfering during taping and post-cannulation management.
- Mini size flexible angled & grooved wings for effective & secure fixation.
- Simple design without any injection port.
- Single use, Non-pyrogenic, Sterile.
Specifications
| Ref/Art No. | Gauge | Colour Code | Ext. Dia. mm | Catheter Length mm | Flow Rate ml./min | Packing Inner/Outer unit |
|---|---|---|---|---|---|---|
| IT0110-14 | 14G | Orange | 2.1 | 45 | 300 | 100/1000 |
| IT0110-16 | 16G | Grey | 1.7 | 45 | 200 | 100/1000 |
| IT0110-17 | 17G | White | 1.5 | 45 | 140 | 100/1000 |
| IT0110-18 | 18G | Green | 1.3 | 45 | 90 | 100/1000 |
| IT0110-20 | 20G | Pink | 1.1 | 32 | 60 | 100/1000 |
| IT0110-22 | 22G | Blue | 0.9 | 25 | 33 | 100/1000 |
| IT0110-24 | 24G | Yellow | 0.7 | 19 | 20 | 100/1000 |
| IT0110-26 | 26G | Violet | 0.6 | 19 | 15 | 100/1000 |
